M730 series

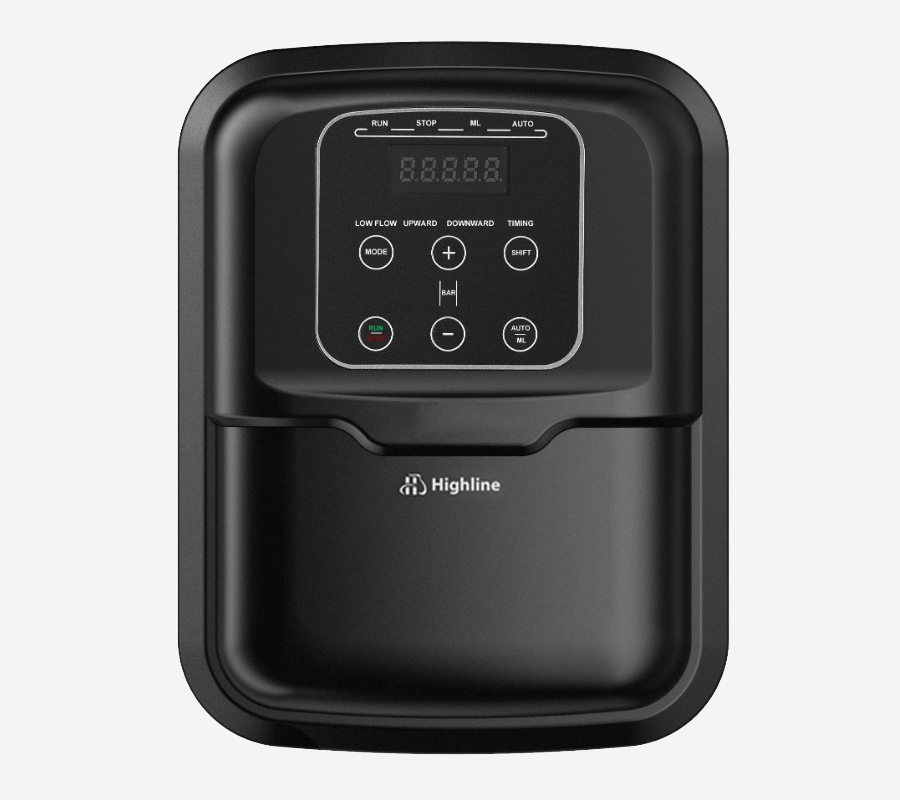

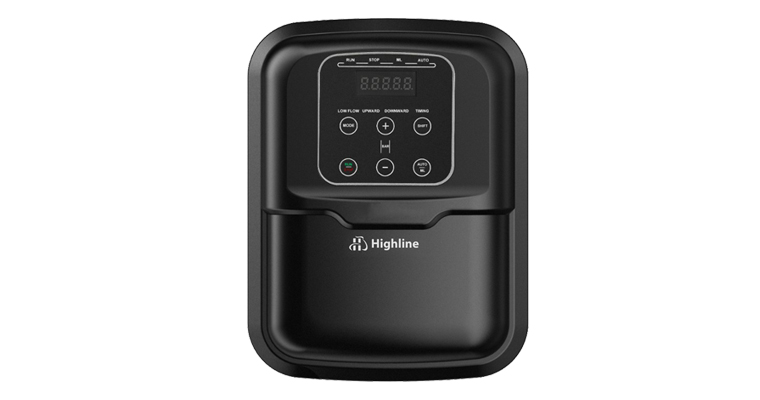

M730-Drive is a variable frequency drive designed for Single Phase 220 V Input Power supply found commonly in Residential & Commercial Establishments. It can work for pumps up to 2.2 KW.

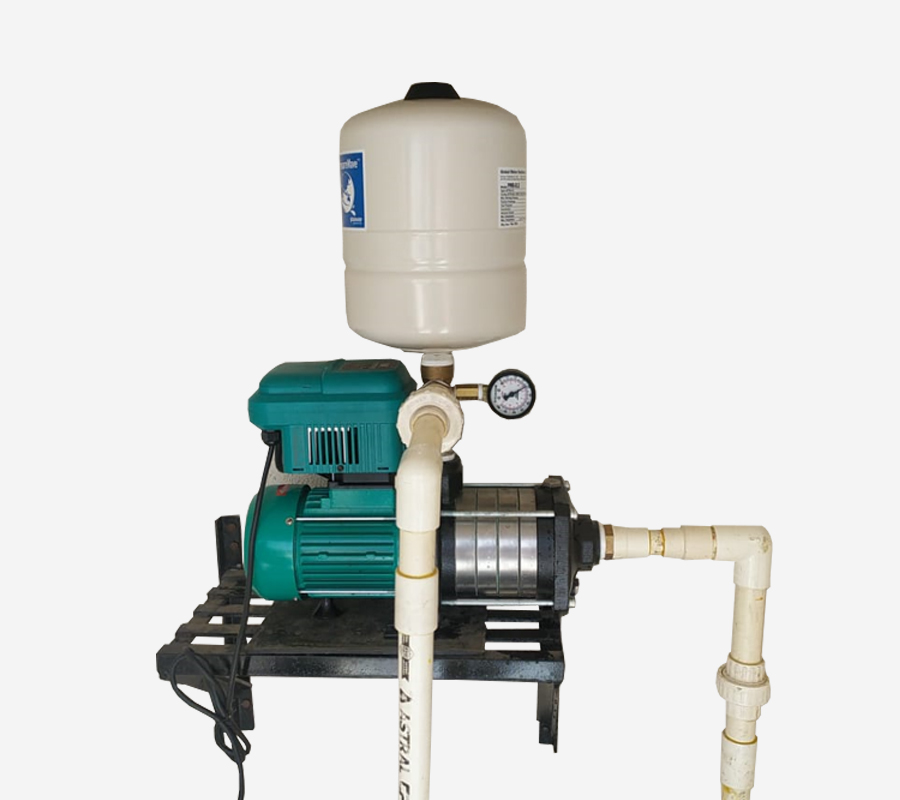

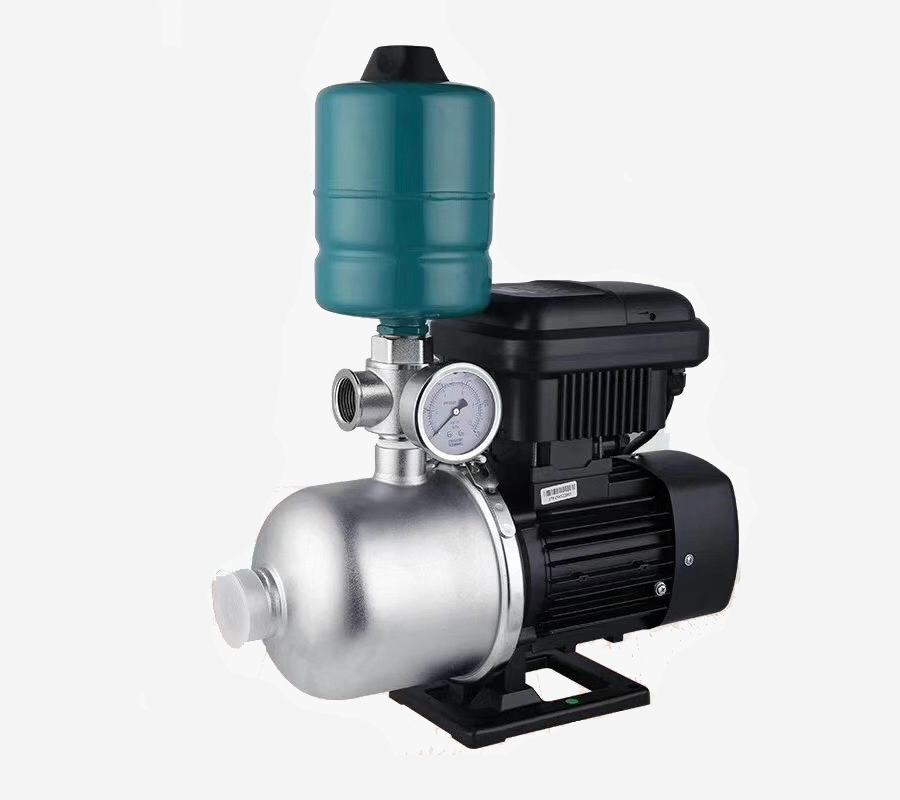

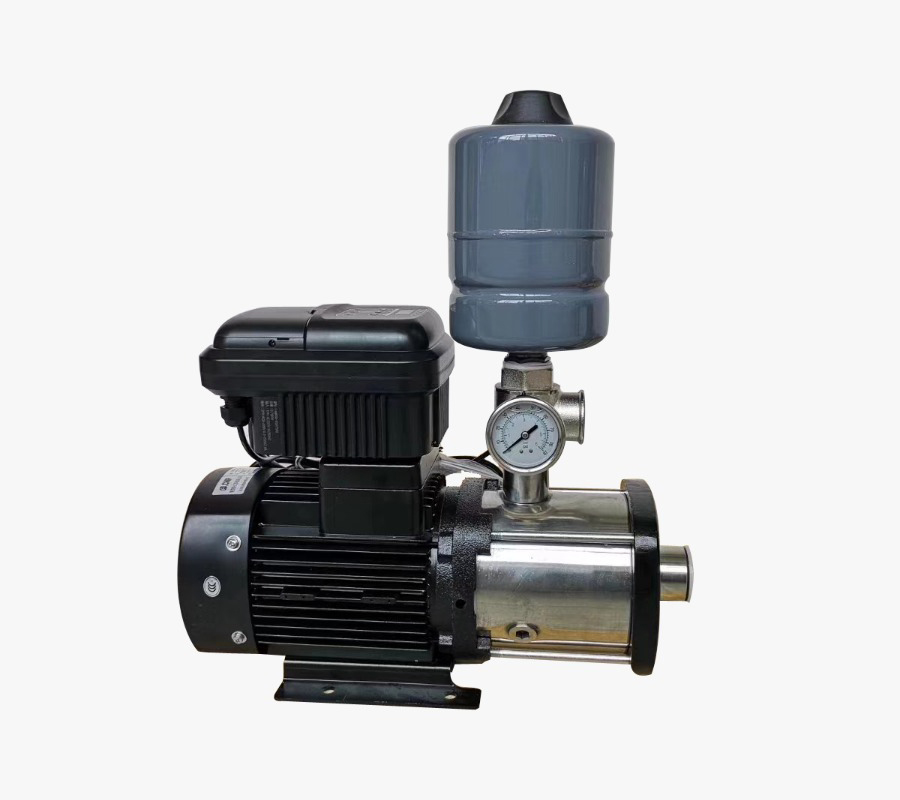

M730 series boasts a simple and elegant design, IP54 protection level along with waterproof and dustproof certification. This series has been specifically designed so that they can be directly mounted on pumps making them a compact yet effective solution. They are well suited single-pump controlling function and are simple to operate with high reliability and quality.
Tables
Applications
- Single Phase Input & Three Phase Output

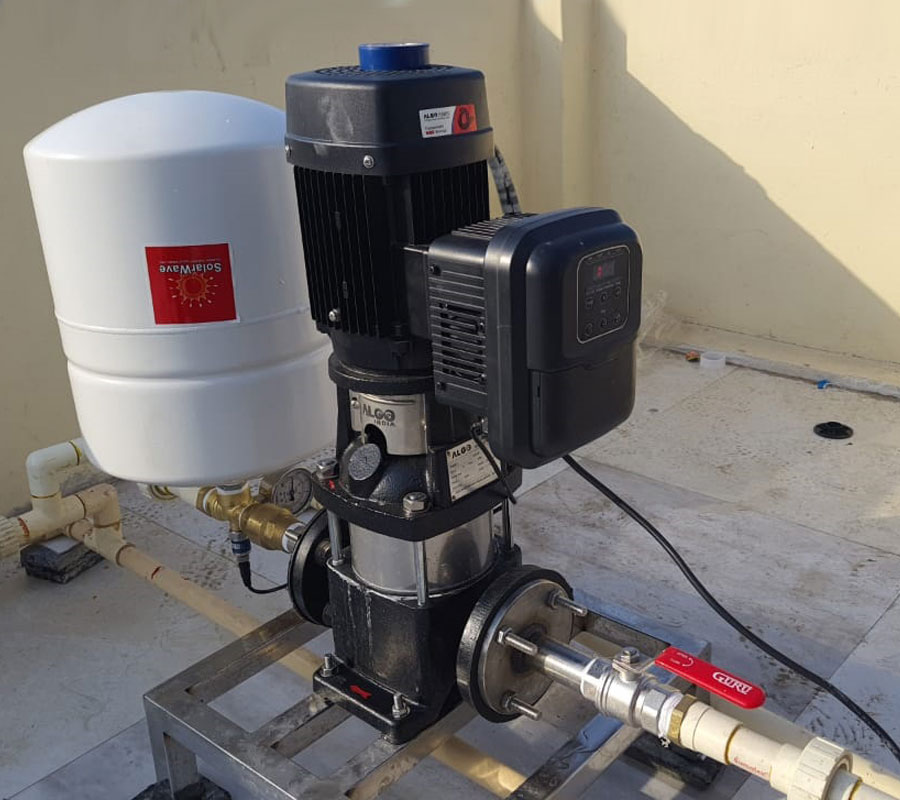

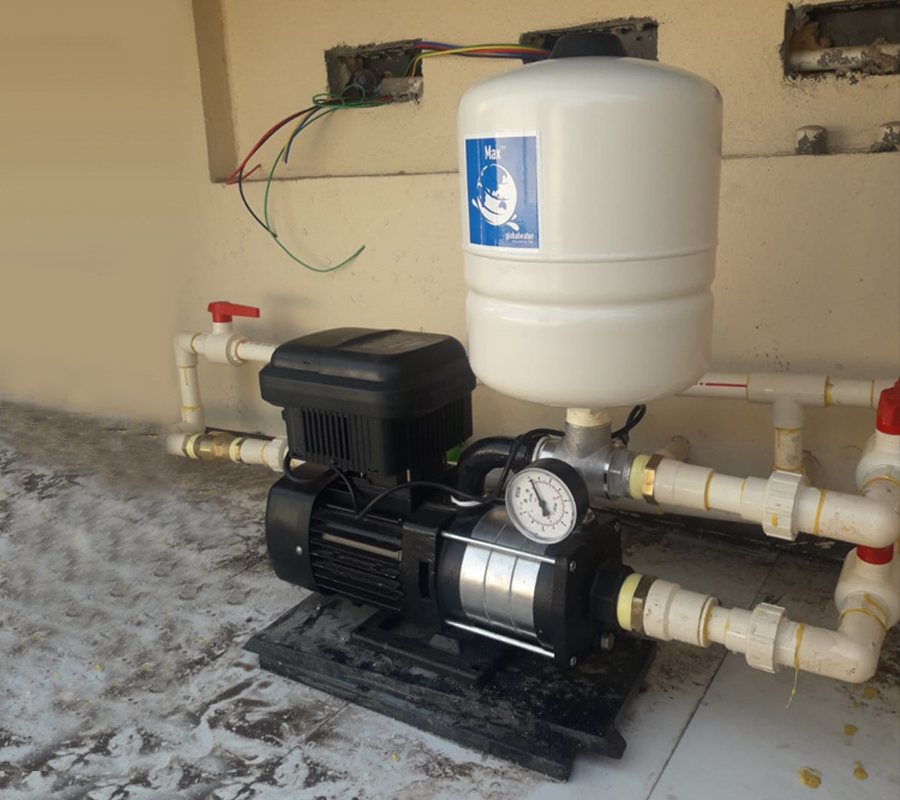

- Pressurized water supply for Villas, Residential & Commercial buildings, Hotels and Hospital
- Water treatment plant R.O/UF/Softener/DMF etc.
- Industrial water system
- Hot water supply system
Technical Specification
| Power | Single Phase Input | Three Phase Output | 1.5 to 2.2 KW |
|---|---|---|---|
| Input Voltage | 190 to 260 V AC (Single Phase 230V) | ||
| Input Frequency | 50 / 60 Hz | ||
| Output Voltage | 230V | ||
| Utility | Various types to water pumps | ||
| Pressure Sensor | 5V 10 Bar | ||
| Ambient Room Temperature Range | 0 to 45 °C | ||
| Medium | Clear water within temperature range of 0 to 90 °C | ||
